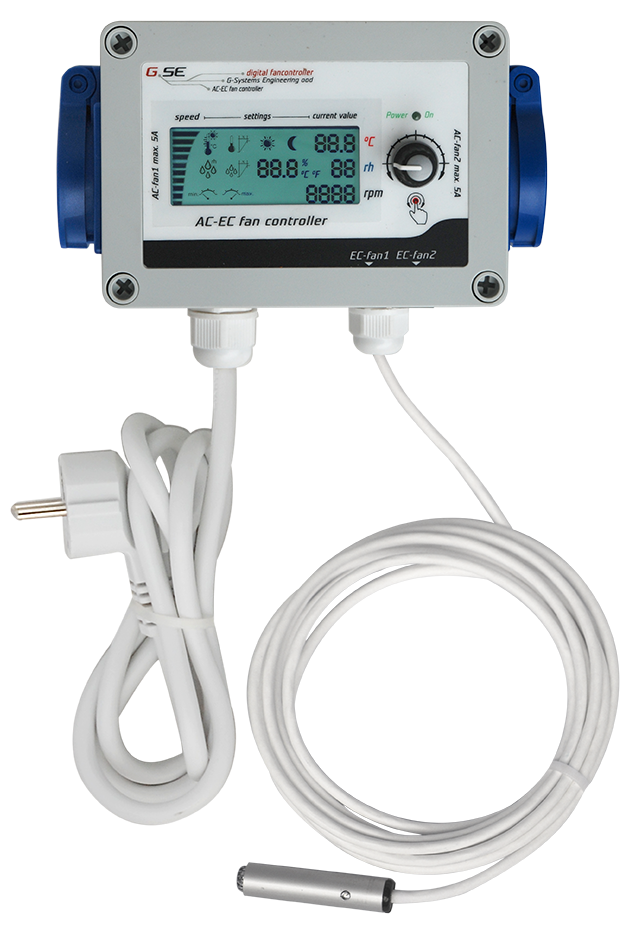

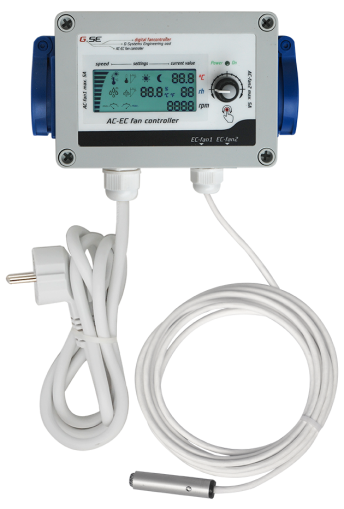

G-SE AC-EC Fan Controller

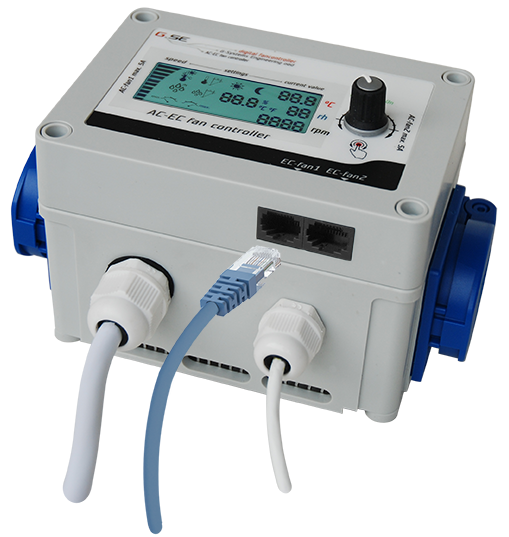

This LCD fan controller with built-in display and rotary knob provides very quick and easy setup and reading of all the information provided by the intake and exhaust fan controller. It displays the temperature, humidity and rpm speed of the EC suction fan. A built-in light sensor detects day/night modes. Two 5A / 230V AC outputs for supply and exhaust fan, meanwhile you also have two RJ45 EC outputs and you can choose between 0-10V or PWM signal (pulse duration modulation).
Setting range:
- Temperature: 15 - 35C° , Hysteresis 1 to 5C°
- Humidity: 0 - 100% , Hysteresis 1 to 20%
- Min. speed: off , 1 to 100%
- Max. speed: 10 to 100%
- Neg. pressure: 0 to 50%
- Brand:G-systems
- Code:12312
- Weight:2.000 Kgs
Quick Buy
Estimated Shipping
to Plovdiv starts at €2.15outside Plovdiv starts at €2.25
to Sofia starts at €2.39outside Sofia starts at €2.39

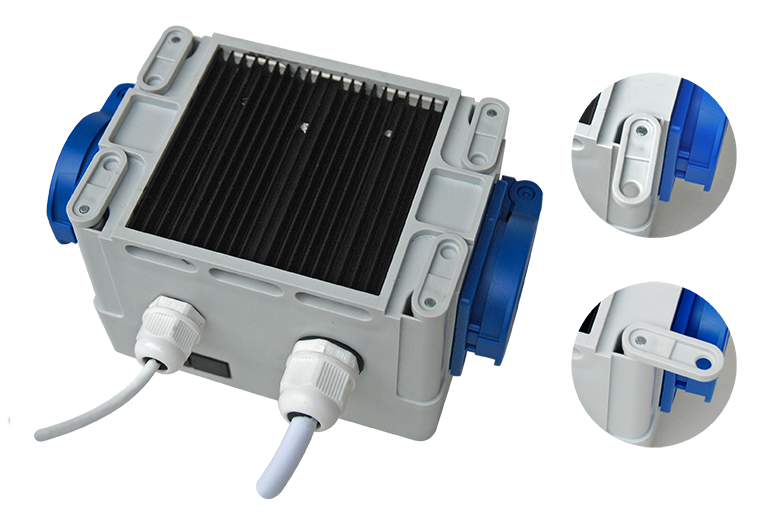

Two internal temperature sensors prevent overheating of the radiator and processor parts. However, if overheating occurs, the variable control shuts off and a safety relay protects the exhaust fan while the supply air fan is off. In this way, the controller prevents complete failure of the ventilation and protects your plants.
The controller is ready for use. This reliable fan controller comes complete with a sealed waterproof cover, capped plugs and a low voltage sensor, making it ideal for damp rooms. The sensor comes with a 4 meter cable. The controller is supplied with a 1.5 meter power cable and a 4 meter sensor cable which can be extended to 10 meters if required.
Video instructions for use in English and Bulgarian: here * andhere *
- Temperature during the day
- Temp. hysteresis during the day
- Humidity during the day
- Humidity hysteresis during the day
- Min. speed during the day
- Max. speed during the day
- Temperature at night
- Temp. hysteresis at night
- Humidity at night
- Humidity hysteresis at night
- Min. speed at night
- Max. speed at night
- Negative pressure setting
- Switch the sensor
- Switch between day/night mode
LCD display:
- Graphical and digital display of the speed constant rpm
- Constant temperature display
- Permanent humidity display
- Possibility to set the desired conditions
Dimensions and technical specification:
- Body WxHxD: 130 x 92 x 105mm
- Controller WxHxD: 160 x 130 x 105mm
- Designed for: 10A / 2 x 1150W / Triac 2 x 16A
- Voltage: 230V / 50HZ
- Digital sensor 5V measures temperature from –55°C to +125°C (–67°F to +257°F)
- Temperature accuracy from –10 to +85°C: 0.5°C
- Humidity accuracy +/-3%RH, max. tolerance 55%RH
- Protection class: IP54
