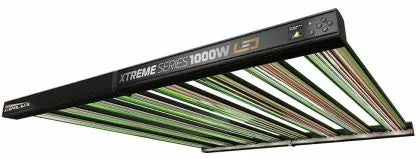

Dimlux Xtreme Series LED 1000W + NIR - LED Lamp for Growth and Flowering

Introducing the smartest, most powerful and most efficient LED lighting on the market! DIMLUX XTREME SERIES LED 1000W+NIR.

Dimlux Xtreme Series LED 1000W + NIR produces ultra-high PPFD levels of 3059μmol/s, evenly distributed over an area of 1.7 x 1.7m. It emits a full spectrum for cultivation, consistently producing crops with high yields and high quality. Dimlux Xtreme Series LED 1000W + NIR can be dimmed without losing efficiency, and the spectrum and power can be programmed according to the time of day and growth stage of the crop.

• power: 1065W at 230-240V
• total light output (PPF 350-800nm): 3059μmol/s
• total photon efficacy (PPF 350-800nm): 2.9μmol/J
• coverage area: 1.7 x 1.7m
• optics: patented lens with deep penetration and ultra-high transmittance
• supplementary light: patented multicolour light tube 65k
• built-in Doppler proximity sensor
• control: built-in (via the display) or with the Dimlux Maxi Controller
• smart ports X3: plant temperature sensor, light sensor, interlink

THE MOST POWERFUL AND INTELLIGENT LED LIGHTING FOR GROWING PLANTS ON THE MARKET! With these innovative LED fixtures, Dimlux sets the benchmark for horticultural lighting. With patented technology, advances in LED technology and an optimal thermal design, Dimlux Xtreme Series LED will be the preferred option, offering a significant return on investment for hobby and professional growers alike. Our adjustable spectrum for growing with PhytoVegSpec® +NIR Indoor combines complete control over the quality of light (spectral flexibility) and the quantity (intensity and DLI), ensuring uniform spreading and even distribution of light with extreme penetration into the crop.

1. +NIR (NEAR INFRA-RED) (NEAR INFRARED 700-750NM = FAR RED). This lighting fixture has an amount of far-red light that is used together with red light. In addition, the far-red light provides a more complete spectrum, increased photosynthesis, increased photon absorption and higher yield due to adapted morphology. Due to the additional far-red component, plants will become slightly taller than with the version without +NIR.

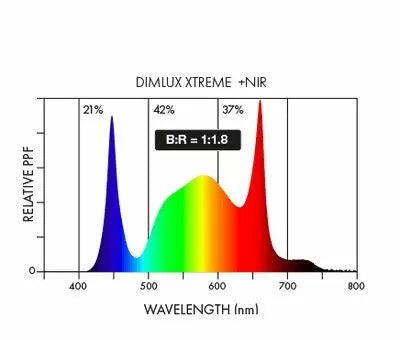

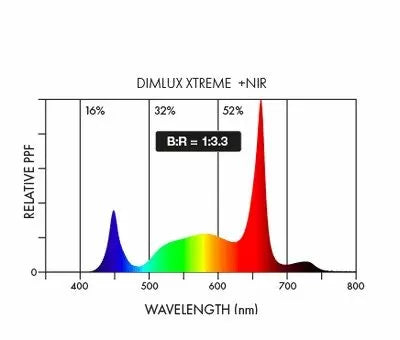

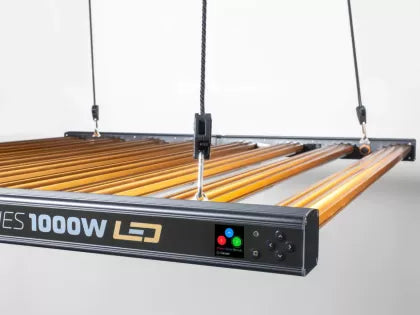

2. COLOUR IPS DISPLAY AND USER INTERFACE. The integration of a colour IPS screen and PhytoVegspec® makes the Xtreme series unique and special. Its special feature is that the spectra and the B:R (blue:red) ratio, or the amount of blue to red light, are displayed very accurately on the screen. Using this information, lighting recipes can be exchanged between growers and companies using values that are quantitatively measurable and therefore universally exchangeable. The values that can be controlled are the percentages of BLUE, GREEN and RED light, the B:R ratio, PPF, PPFD, DLI, power, the percentages of emitted light, plant temperature and air temperature.
3. BUILT-IN OR EXTERNAL CONTROL. The lighting fixture can operate entirely independently and even serve as the main unit in a group with other lighting fixtures. They can also be controlled by external devices such as the Dimlux Maxi Controller or other controllers. Since the lighting fixture can be updated via Wi-Fi, it is possible to work according to the latest trends in lighting strategy and supplement the spectrum by adding additional lighting fixtures.
4. DRIVERLESS DESIGN (ballast). The drivers that power the LEDs are integrated into the frame of the lighting fixture. Since high-voltage drivers are used, efficiency is particularly high and heat losses are therefore lower. This lower heat loss makes it possible to integrate the drivers into the frame.
5. TILTED LENSES WITH DEEP PENETRATION AND ULTRA-HIGH TRANSMITTANCE. The tilted LED bars are designed to provide the ideal balance between light penetration and its even spread. At the recommended height above the crop, uniformity higher than 95% can be achieved when multiple lighting fixtures are used. Because the light from the lenses is focused, less scattered light is lost on walls and walkways. The patented ultra-high-transmittance lens is internally shaped in such a way that the light rays that would normally be reflected back towards the LED (converted back into heat) now end up right next to the LED and are reflected.
6. ADDITIONAL LIGHT TUBE WITH FULL-COLOUR LEDs. Our lighting fixtures have unique additional lighting that is directed through lenses built into the light tube. The auxiliary lights consist of full-colour LEDs and serve as additional lighting, an alarm indicator, a plant-temperature indicator or night lighting, depending on the situation.
7. SMART PORTS 3X. The Xtreme series has 3 available Smart ports. These are universal communication ports with various connection options for a wide range of sensors, such as a Plant Temperature Sensor, an Air Temperature Sensor, CO₂ and humidity, as well as climate-control devices. Communication can be both analogue and digital through the Smart Protocol. It is possible to control up to 160 lighting fixtures via analogue communication and >1000 fixtures via the Smart Protocol.
8. DOPPLER RADAR PROXIMITY SENSOR. The built-in Doppler radar sensor can detect movement up to 3 metres away. This sensor is used, for example, to activate the screen and for automatic activation of (green) additional lighting at night. The intensity and colour of the additional lighting can be adjusted so that the room can be entered at night without disturbing the plants' rhythm. Because the night lighting switches on only when movement is detected, it will not unnecessarily illuminate areas where it is not needed. The night lighting can be set to different intensities and colours, such as blue, which appears to have less effect on the sleep rhythm than green light, but to which human vision is less sensitive. The sensor will also be used to automatically switch off UV rays when the additional fixtures are used, preventing eye and skin damage.

Brochure and instructions for use in English: here*, here* and here*

Full technical specifications:

• model: Xtreme Series 1000W (+ NIR)

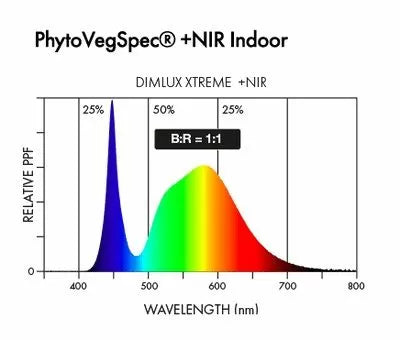

• full spectrum: adjustable PhytoVegspec® +NIR Indoor
• total light output (PPF 350-800nm): 3059μmol/s
• total photon efficacy (PPF 350-800nm): 2.9μmol/J
• power: 1065W at 230-240V
• voltage: 120-277V AC, 50/60Hz
• beam angle: 90° × 120°
• mounting height above plants: 40-85cm
• optics: patented deep-penetration lens with ultra-high transmissivity
• supplementary light: patented 65k multicolour light tube
• proximity sensor: Doppler radar
• cooling: passive
• max. ambient temperature: 40°C
• control: built-in (via the display) or with the Dimlux Maxi Controller
• smart ports X3: plant temperature sensor, light sensor, interlink
• spectrum display with graphical user interface (control menu): 1.54" 65k-colour IPS
• THD: < 10%
• lifetime: > 50 000 hours
• water and dust resistance: IP65
• certification: CE, UL 8800, UL 1598 Wet Location, DLC
• warranty: 5 years
• dimensions: 120 x 110 x 6cm
• weight: 24kg
