GSE Temperature Controller, Min. and Max. Speed and Hysteresis (1 Fan, 2.5A)

Controller with settings for temperature, minimum and maximum speed, and hysteresis (temperature range), controlling an exhaust-air fan.

Dimensions and technical data:

• Product dimensions: W80xH80xD130mm
• Package dimensions: W150xH110xD170mm
• Designed for: 1A / 200W / TRIAC 1x16A
• Voltage: 230V / 50HZ
• The 5V digital sensor measures temperatures from –55°C to +125°C (–67°F to +257°F )
• 0.5°C Accuracy from –10°C to +85°C
• Protection class: IP54

Adjustment range:

• Temperature: from 20C° to 30C°
• Minimum speed: off, 20%, 100%
• Maximum speed: 100% to 50%
• Hysteresis (temperature range): 1C° to 8C°

Instructions for use here!

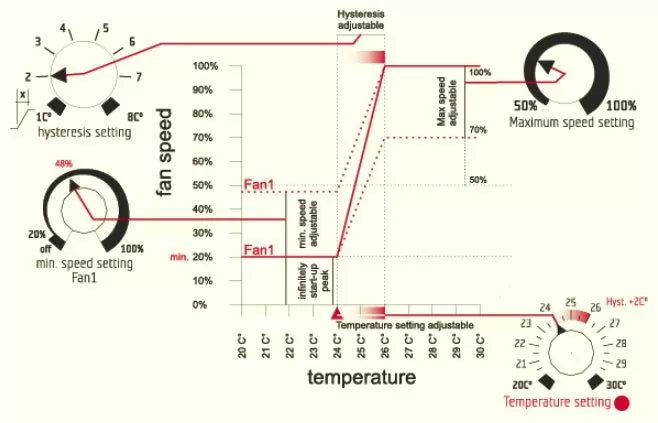

• The controller keeps the temperature constant and prevents the fans from falling below or rising above the set speeds. Hysteresis determines the temperature limits.
• Ready to use, reliable, with a waterproof housing, socket covers and a low-voltage sensor, making it ideal for damp rooms.
• The sensor has a 4m cable that can be extended to 50m.
