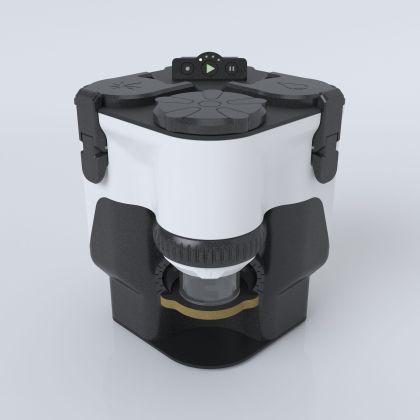

Merlin400 oil extraction machine

Merlin400 is the world's first automated kitchen appliance for home extraction, allowing you to produce medical CBD oil in your kitchen. Merlin400 can extract 20-40 grams of hemp and completes the extraction in 2-4 hours. It is the easiest way to create your own, flavour-rich extract, suitable for oral consumption or for use in electronic cigarettes.

• fully automated
• high extraction yield (95%)
• compact and easy to use

Compatible material types:

• CBD flowers
• trim (leaf-trimming residue)
• seeded material
• industrial hemp flower
• mixed industrial hemp

Instructions for use in English: here*

Key features:

1. Fully automated. Merlin400 is a closed-loop alcohol extractor designed to operate at the touch of a button. It extracts everything and automatically produces a ready-to-use oil extract. The extraction parameters are optimised to give you the perfect oil.
2. High extraction yield. The patented extraction process delivers up to 95% while virtually eliminating chlorophyll and other unpleasant-tasting pigments from the final product. It is the easiest way to create your own, flavour-rich extract, suitable both for oral consumption and for use in electronic cigarettes.
3. Compact and easy to use. Do not be fooled by its small dimensions (23x22x20cm). This innovative appliance can extract 20 to 40 grams of cannabis or hemp at a time, while fitting neatly on the kitchen counter. All you need to do is place your cannabis in the machine and press the start button – the rest is automatic.
4. For hemp. You can use all parts of the hemp plant to produce full-spectrum CBD medical oil.

Features:

1. 1 EXTRACTION

• Extraction efficiency: up to 95% cannabinoids from your plant material, depending on herb quality and extraction settings.
• Capacity: 20-40 grams of plant material per extraction.
• Terpenes: extracts the full-spectrum terpene profile of the plant, which is preserved in the final product thanks to the extract's fine vacuum distillation.
• Extraction time: 2-4 hours, depending on the settings.
• Compatible material types: CBD flowers, trim material (leaf-trimming residue), seeded material, industrial hemp flower, mixed industrial hemp.
• Cannabinoid state after extraction: non-decarboxylated – built-in optional program for decarboxylation*.
• Distillation temperature: < 45°C
• Pressure during distillation: < 200 mbar

1. 2 EXTRACTION SOLVENT

• Compatible extraction solvent: 99% isopropanol.
• Alcohol tank capacity: 600ml.
• Extraction alcohol loss: 200ml (residual alcohol retained in the wet plant material).

1. 3 TECHNICAL SPECIFICATIONS​

• Voltage: 100-240V, 50/60 Hz.
• Power consumption: up to 100 W
• Dimensions L x W x H: 210 x 210 x 235mm
• Weight: 2.5kg
• Operating system: Linux

The Merlin400 kit includes everything you need to start producing oil straight away:

• 1 Merlin400 extraction machine
• 1l pharmaceutical-grade isopropanol*
• 20 custom filters
• 1 plunger
• 1 funnel
• 5 pipettes
• 1 x 2ml dropper bottle
• 1 x 10ml dropper bottle
• 1 herbal tube
• 1 filter holder
• 1 tube holder
• 1 oil cup
• 20 glass beads
• 2 valve balls
• 1 x 60ml syringe
• 1 power cable
• 1 instruction manual in English
