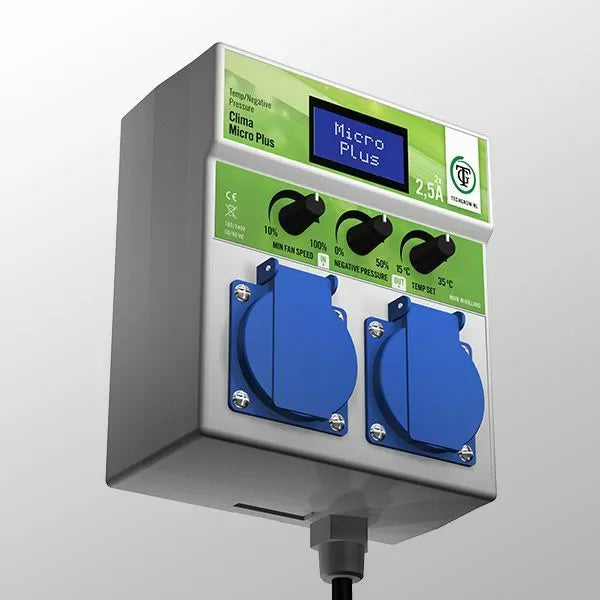

TechGrow Clima Micro Plus, 2 × 2.5 A, Negative Pressure

TechGrow - Clima Micro Plus 2 x 2.5A (Negative pressure) regulates the minimum speed of the exhaust fan until the desired temperature and desired negative air pressure are reached or maintained at the intake fan for optimal air circulation. The controller operates based on the minimum fan speed, temperature and hysteresis, negative air pressure and maximum fan speed (100%). The display shows the currently measured temperature and the recorded minimum / maximum values from the connected sensor.

• Controls the minimum speed of the exhaust fan until the desired temperature is reached or maintained
• Controls the negative air pressure of the intake fan for optimal air circulation
• Displays the current temperature and the recorded measured minimum/maximum values
• Minimum intake fan speed setting range: 10% - 100%
• Negative air pressure setting range of the intake fan: up to 50%
• Temperature setting range: 15° - 35°C
• Hysteresis setting range: 1°C - 5°C
• Minimum required sensor: TempProbe (not included)

Features:

• Controls the minimum speed of the exhaust fan until the desired temperature is reached or maintained
• Controls the negative air pressure of the intake fan for optimal air circulation
• Displays the current temperature and the recorded measured minimum/maximum values
• The set minimum fan speed, set temperature and set negative pressure are retained in the event of a power failure
• Minimum fan speed setting range: 10% - 100%
• Negative air pressure setting range of the intake fan: up to 50%
• Temperature setting range: 15° - 35°C
• Hysteresis setting range: 1°C - 5°C
• The display updates every second
• Automatic display backlight switch-off after 60 seconds
• Automatic detection of cable faults or poor sensor connection
• 2 UTP ports
• Easy fuse replacement (spare fuse included)
• Minimum required sensor: TempProbe (not included)

Technical specifications:

• Power supply: 100-240V
• Power consumption: 3W
• Fuse: 5A
• Power cable: 3x1.5 mm / 1.7 m
